multibase 2078i
Car Stacker

Overview

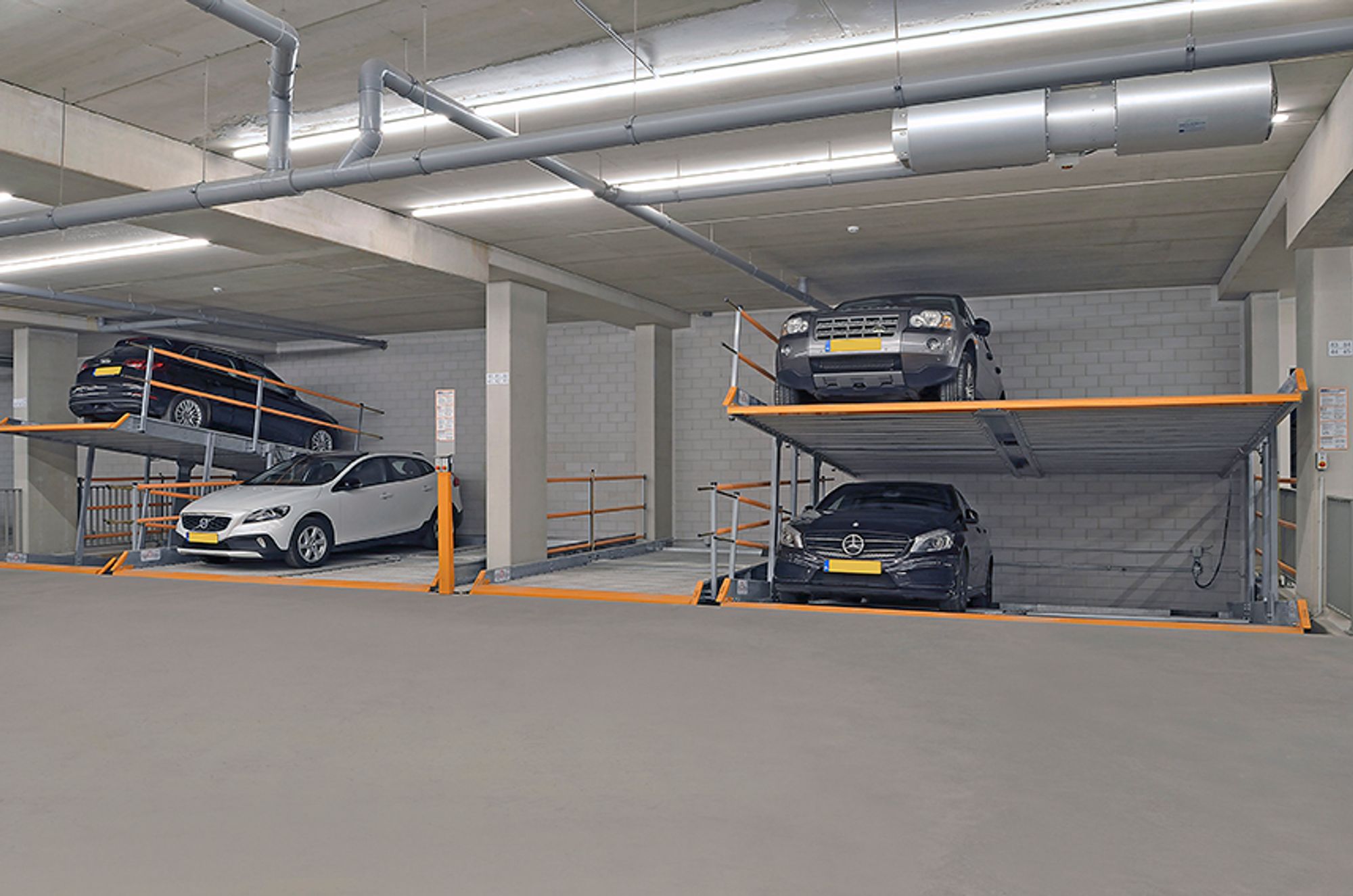

Compared to other systems, the MultiBase 2078i is characterised by its low installation height. This is made possible by the inclined platforms. The MultiBase 2078i not only saves a lot of space, but also provides increased load capacity, parking space and comfort – despite its lower height! The offset steel pillar lets car doors open further, thus ensuring comfortable entry and exit. Another advantage is that the MultiBase 2078i can be used to park heavy vehicles up to a height of 2,150 mm.



Project Documents

Data Sheet – Multibase 2078i (2MB)

TENDER SPECIFICATION – MULTIBASE2078I (84KB)

DWG – MULTIBASE 2078I (31MB)

REVIT 3D Model – MULTIBASE 2078I (18MB)

Specifications

  • Independent parking
  • 2 levels
  • 2-4 spaces per stacker
  • Indoor system
  • Pit depth anywhere from 1,700mm to 2,350mm
  • Pit length 5,300mm/5,500mm
  • Pit width anywhere from 2,600mm to 5,700mm
  • Height anywhere from 2,900mm and up
  • Usable platform width anywhere from 2,300mm to 5,400mm
  • Usable platform length 5,000mm/5,200mm
  • Weight options 2.0t/2.6t/3.0t
  • No gates required due to key switch operation

Accessories

Upgrades and optional extras available for your KLAUS parking system.
