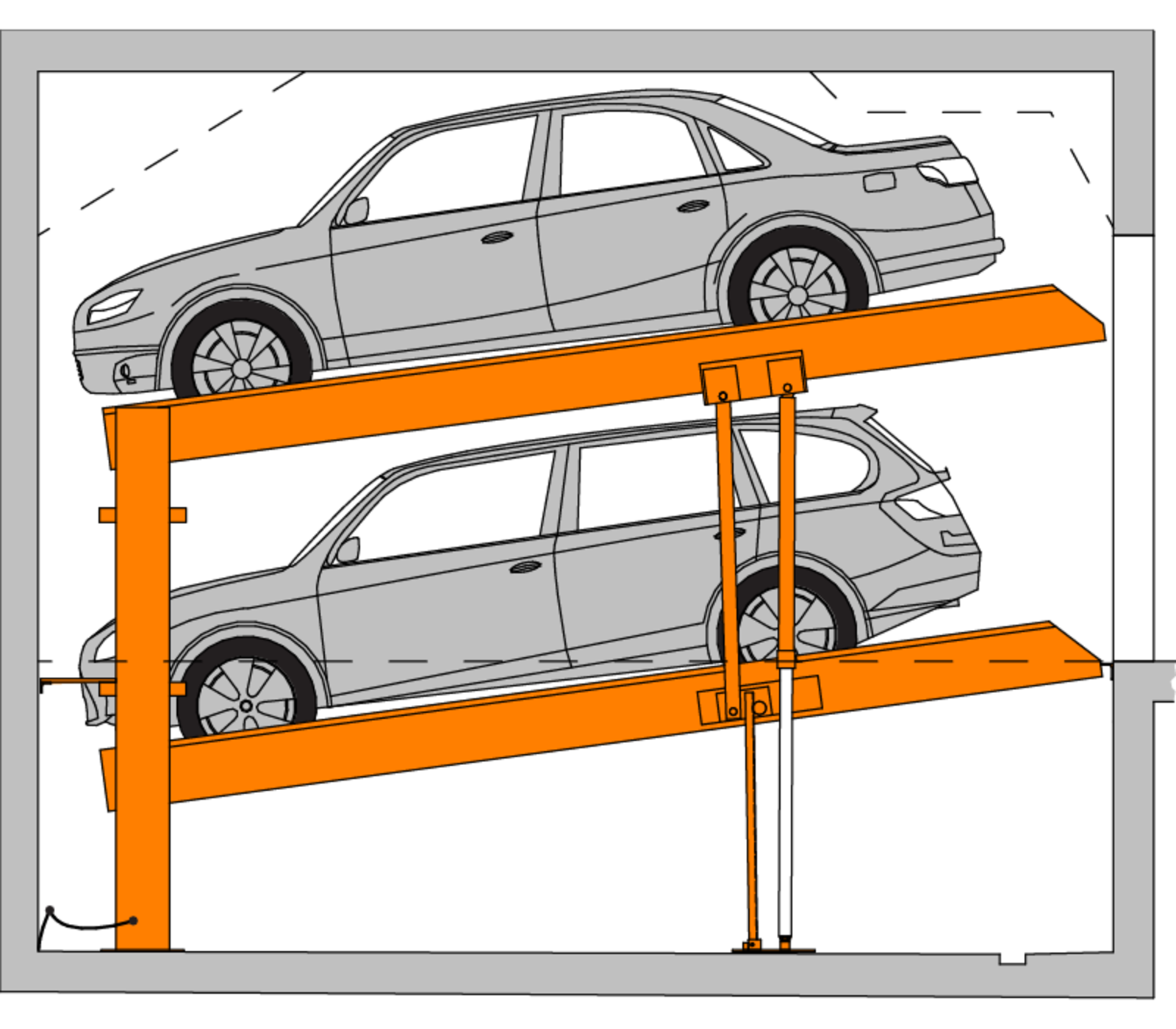

MultiBase 2042 Car Stacker

Product Information

The MultiBase 2042 base model gets the most out of an existing parking area. This system is the most effective solution, especially with low installation height and depth.

Project Documents

Data Sheet – Multibase 2042 (2MB)

TENDER SPECIFICATION – MULTIBASE 2042 (73KB)

DWG – MULTIBASE 2042 (550KB)

DXF – MULTIBASE 2042 (1100KB)

Specifications

Independent parking
2 levels
2 – 4 spaces per stacker
Indoor system

Pit depth 1,550mm
Pit length 5,300mm/5,500mm
Pit width anywhere from 2,600mm to 5,300mm
Height anywhere from 2,950mm and up
Usable platform width anywhere from 2,300mm to 5,000mm
Usable platform length 5,000mm/5,200mm
Weight options 2.0t

No gates required due to key switch operation
Slightly angled access to all parking levels
