multibase U10
Car Stacker

Product Information

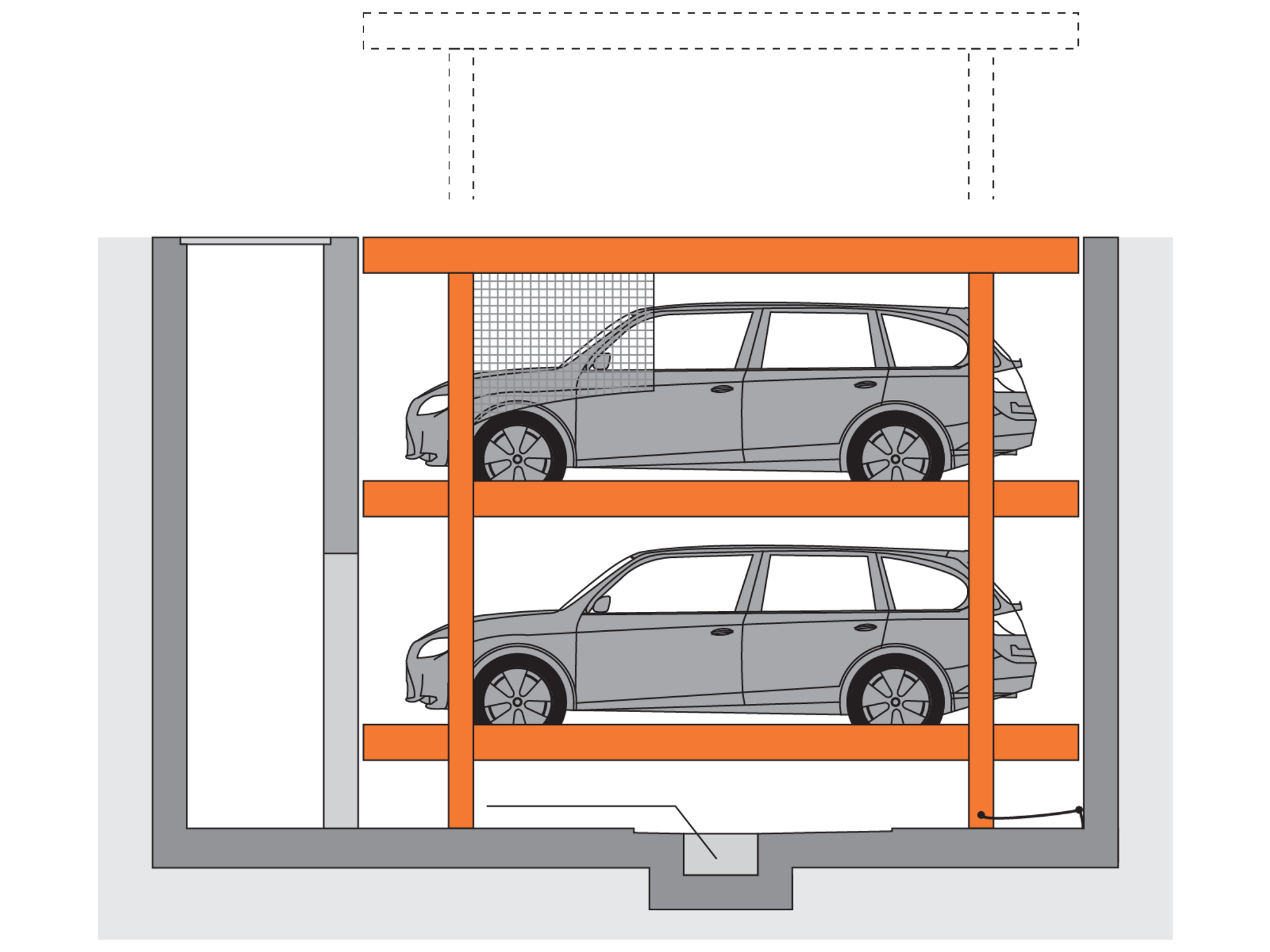

Hide your cars underground with the “Disappearing Effect” of the Underfloor System. This premium system comes in one or two levels underground. The uppermost platform, the top deck, flush finishes when fully lowered, which allows decorative design according to your likings – for an increased value of your property.

When fully lowered, the Multibase U10 or U20, can be drive-through, thus, can be used in narrow courtyards, front gardens, or in front of another one of our systems. Their premium design offers maximum comfort with optimum space utilization.



Project Documents

Data Sheet Multibase U10 (2.6MB)

DWG – U10

Specifications

  • Independent parking
  • 1 underground level
  • 1 underground spaces
  • Indoor/Outdoor system
  • Traversible upper platform
  • Pit depth 2,500mm or 2,850mm
  • Pit length 5,300mm or 5,500mm
  • Pit width anywhere from 2,750mm to 3,100mm
  • Height anywhere from 2,050mm and up
  • Usable platform width anywhere from 2,300mm to 2,700mm
  • Usable platform length 5,000mm or 5,200mm
  • Weight options 2.0t as standard or 2.6t as optional
  • No gates required due to key switch operation
  • Top surface can be freely designed: cassette-type cover, which can be designed to blend in with surroundings on request (e.g. stone layer, lawn)
  • Separate maintenance shaft is required
  • Horizontal access to all parking levels
  • Flush to the ground and can be driven on, controlled rainwater drainage

Accessories

Upgrades and optional extras available for your KLAUS parking system.
