multibase U3
Car Stacker

Product Information

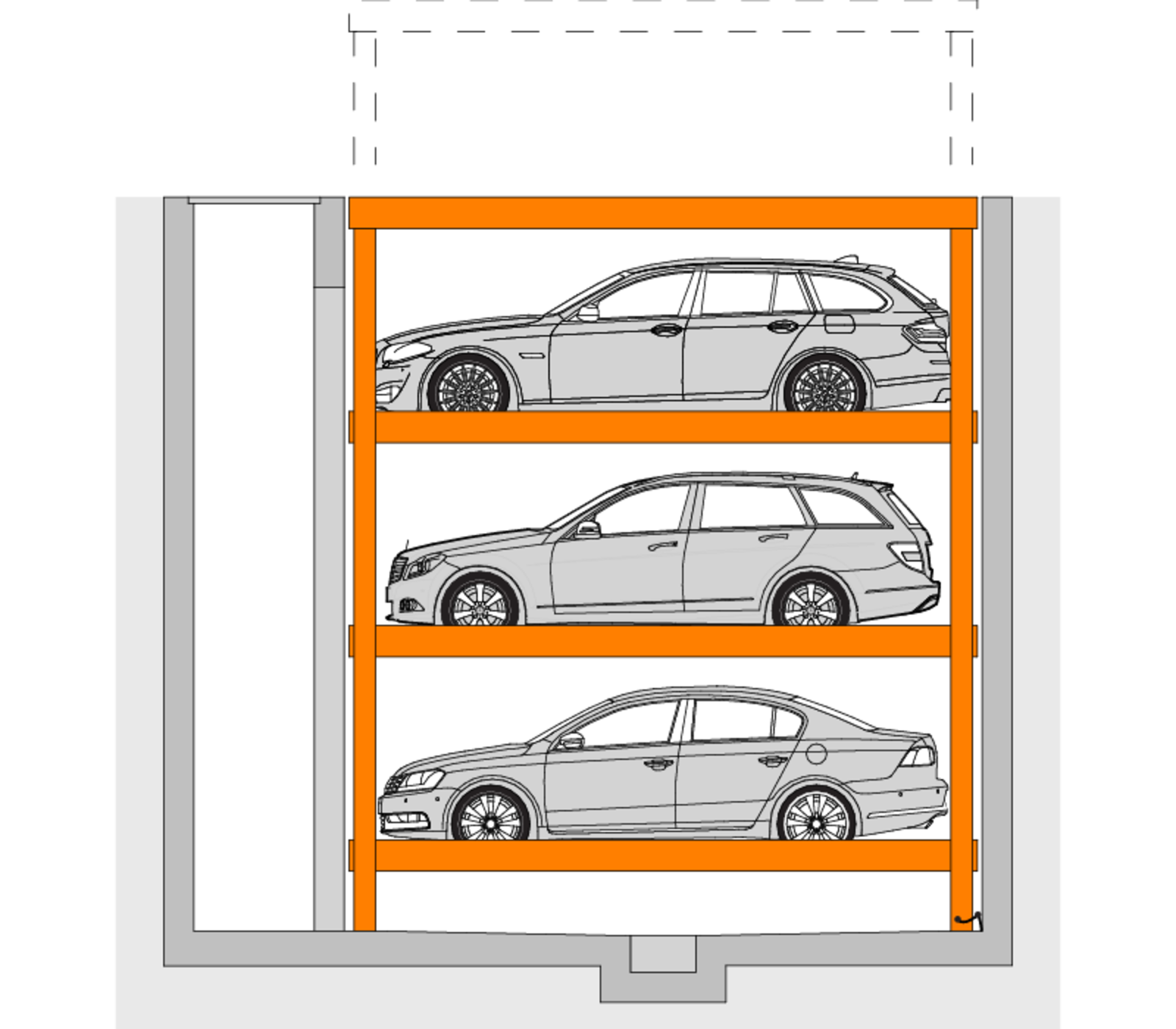

Hide your cars underground with the “Disappearing Effect” of the Underfloor System. This premium system comes in one, two, or three levels underground. The uppermost platform, the top deck, flush finishes when fully lowered, which allows decorative design according to your likings – for an increased value of your property.

When fully lowered, the Multibase U1, U2, or U3, can be drive-through, thus, can be used in narrow courtyards, front gardens, or in front of another one of our systems. Their premium design offers maximum comfort with optimum space utilization.



Project Documents

Data Sheet – Multibase U3 (215KB)

TENDER SPECIFICATION – MULTIBASE U3 (82KB)

DWG – MULTIBASE U3 (4MB)

Specifications

  • Independent parking
  • 3 underground level
  • 3 – 6 underground spaces
  • Indoor/Outdoor system
  • Traversible upper platform
  • Pit depth 6,050mm
  • Pit length 5,300mm/5,500mm
  • Pit width anywhere from 2,750mm to 5,850mm
  • Height anywhere from 5,650mm and up
  • Usable platform width anywhere from 2,300mm to 5,400mm
  • Usable platform length 5,000mm/5,200mm
  • Weight options 2.0t/2.6t
  • No gates required due to key switch operation
  • Top deck flooring is available to various materials
  • Separate maintenance shaft is required
