Product Information

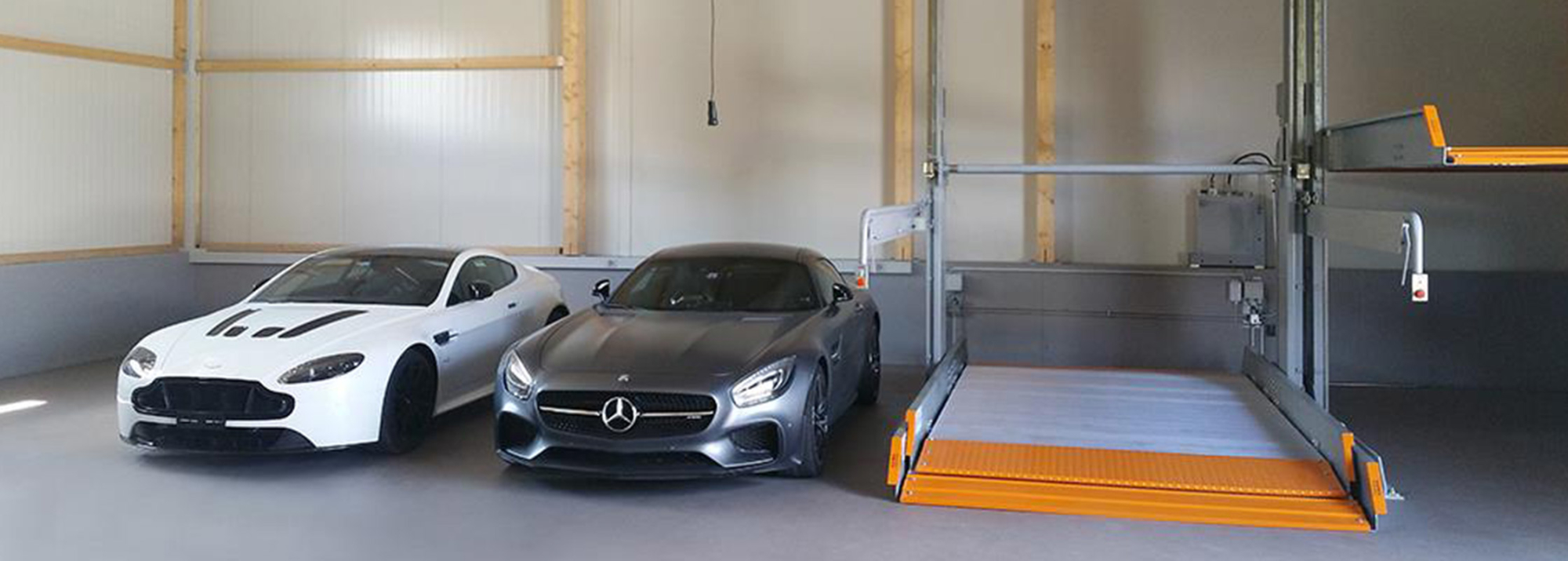

The SingleUp 3015 is a true towering stacker system. If sufficient room height is available, it can accommodate three vehicles in a very small area.

Project Documents

Data Sheet – SingleUp 3015 (390KB)

TENDER SPECIFICATION – SINGLEUP 3015 (73KB)

DWG – SINGLEUP 3015 (340KB)

Specifications

Dependent parking
3 levels
3 spaces per stacker
Indoor system

Length 5,400mm
Width anywhere from 2,500mm to 2,700mm
Height anywhere from 5,600mm and up
Usable platform width anywhere from 2,200mm to 2,400mm
Usable platform length 5,000mm
Weight options 2.0t

No gates required due to key switch operation

Accessories

Upgrades and optional extras available for your KLAUS parking system.

View Accessories
