singleup 2015
Car Stacker

Product Information

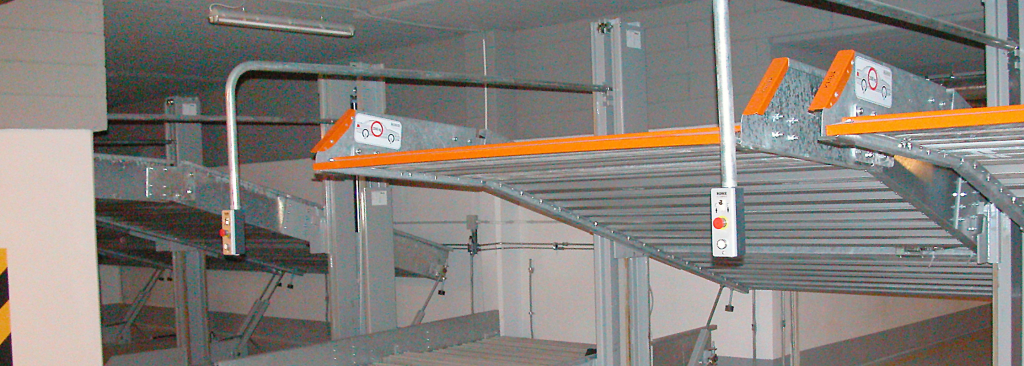

The space-saving SingleUp 2015 system is the right choice in low-ceiling areas. The lower parking area must always be empty in order to lower the platform



Project Documents

Data Sheet – SingleUp 2015 (400KB)

TENDER SPECIFICATION – SINGLEUP 2015 (69KB)

DWG – SINGLEUP 2015 (900KB)

Specifications

  • Dependent parking
  • 2 levels
  • 2 spaces per stacker
  • Indoor system
  • Length 5,300mm
  • Width anywhere from 2,400mm to 2,600mm
  • Height anywhere from 2,900mm and up
  • Usable platform width anywhere from 2,100mm to 2,300mm
  • Usable platform length 4,800mm
  • Weight options 2.5t
  • No gates required due to key switch operation

Accessories

Upgrades and optional extras available for your KLAUS parking system.
